The scope of delivery includes routing connectors with a cross-section of 0.25 mm², a length of 60 mm, 10 pieces.
Technical data
| Artikel | Querschnitt | Anzahl | Farbe |
| 1504-1020 | 0,25 qmm | 10 | Rot |
| 1504-1030 | 0,25 qmm | 10 | Orange |
| 1504-1040 | 0,25 qmm | 10 | Gelb |
| 1504-1050 | 0,25 qmm | 10 | Grün |
| 1504-1060 | 0,25 qmm | 10 | Blau |
| 1504-1070 | 0,25 qmm | 10 | Lila |
| 1504-1080 | 0,25 qmm | 10 | Grau |
The routing connectors are used to route unused measurement channels of the 8-pin connection to an output pin splitter. The first unused measurement channel is always connected to pin 1 of the output connector. This means that the remaining measurement channels are available again from pin 1 for the next adapter.

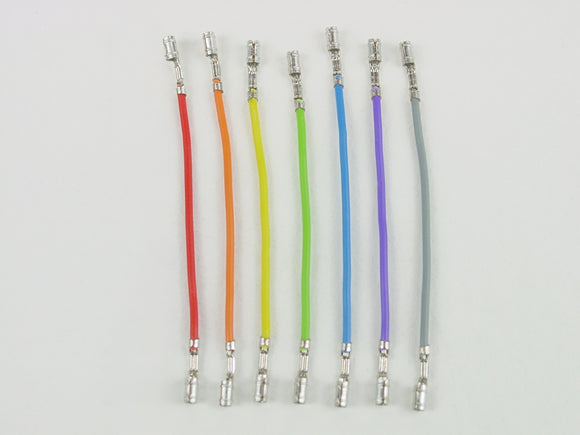

The routing connectors are supplied in the following colors: red, orange, yellow, green, blue, purple, and grey.
| 1 | Rot | |
| 2 | Orange | |
| 3 | Gelb | |
| 4 | Grün | |
| 5 | Blau | |
| 6 | Lila | |
| 7 | Grau |
